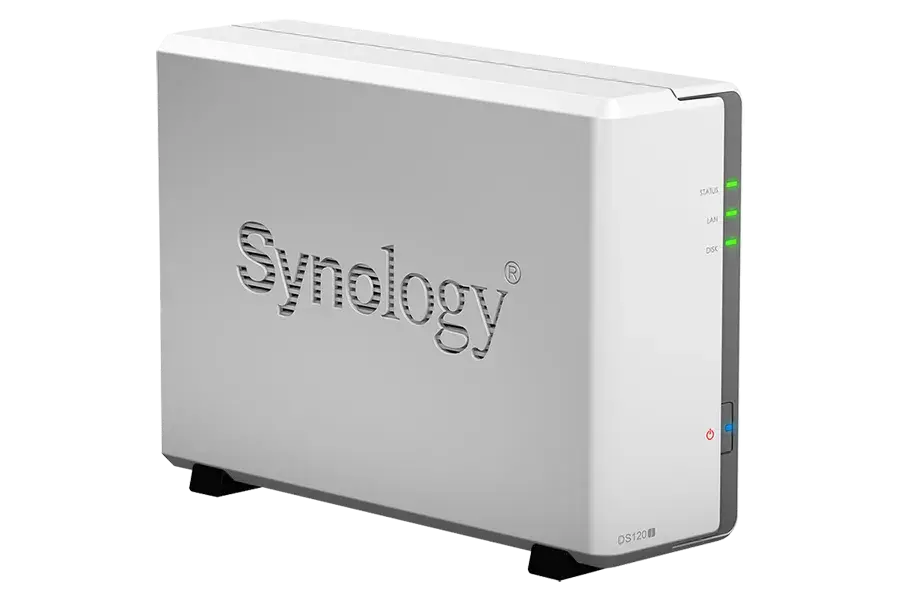

Synology Diskstation DS120j 1 Bay Nas Enclosure

Features

An ideal first NAS for everyone

DS120j is a centralized storage solution that allows you to share family photos and videos to all household devices, such as computers and mobile phones.

Fast Performance : Over 112 MB/s sequential reading

Eco-friendly : 9.81 watts under full operation

Seamless integration with your mobile devices

Synology mobile applications are designed to allow quick and secure access to your data wherever you are.

• DS audio
• DS Photo
• DS video

Centralized backup solution for your digital devices

Synology's comprehensive multi-version backup solution protects your digital assets on computers (Windows/Mac) and mobile phones (Android/iOS) against malicious attacks, including the rising encryption-based ransomware threats.

Easy file access with QuickConnect

Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a secure, customizable address, so that you can instantly access media and work files on any Internet-connected device at no additional charge.

Specifications

CPU

• CPU Model : Marvell Armada 3700 88F3720
• CPU Architecture : 64-bit
• CPU Frequency : 2-core 800 MHz
• Hardware Encryption Engine : Yes

Memory

• System Memory : 512 MB DDR3L non-ECC
• Notes : Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

• Drive Bays : 1
• Compatible Drive Type* (See all supported drives) :
  • 3.5" SATA HDD
  • 2.5" SATA HDD (with optional 2.5" Disk Holder)
• Maximum Single Volume Size* : 108 TB
• Hot Swappable Drive : -
• Notes : "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

• RJ-45 1GbE LAN Port : 1
• USB 2.0 Port : 2

File System

• Internal Drives :
• EXT4
• External Drives :
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT*
• Notes : exFAT Access is purchased separately in Package Center.

Appearance

• Size (Height x Width x Depth) : 166 mm x 71 mm x 224 mm
• Weight : 0.7 kg

Others

• System Fan : 60 mm x 60 mm x 1 pcs
• Fan Speed Mode :
• Full-Speed Mode
• Cool Mode
• Quiet Mode
• Low-power Mode
• Power Recovery : Yes
• Noise Level* : 16.9 dB(A)
• Scheduled Power On / Off :
• Wake on LAN / WAN :
• Power Supply Unit / Adapter : 36 W
• AC Input Power Voltage : 100 V to 240 V AC
• Power Frequency : 50/60 Hz, Single Phase
• Power Consumption* :
  • 9.81 W (Access)
  • 4.68 W (HDD Hibernation)
• British Thermal Unit :
  • 33.47 BTU/hr (Access)
  • 15.97 BTU/hr (HDD Hibernation)
• Notes :
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75?C; Humidity: 58.2-61.8%

Temperature

• Operating Temperature : 0°C to 40°C (32°F to 104°F)
• Storage Temperature : -20°C to 60°C (-5°F to 140°F)
• Relative Humidity : 5% to 95% RH

Certification

• EAC
• CCC
• KC
• FCC
• CE
• BSMI
• VCCI
• RCM

Warranty

• 2 Years
• Notes : The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

• RoHS Compliant
• Packaging Content
• Main Unit X 1
• Accessory Pack X 1
• AC Power Adapter X 1
• RJ-45 LAN Cable X 1
• Quick Installation Guide X 1

Optional Accessories

• VisualStation: VS960HD/VS360HD
• Surveillance Device License Pack
• Disk Holder: Type C

DSM Specifications
