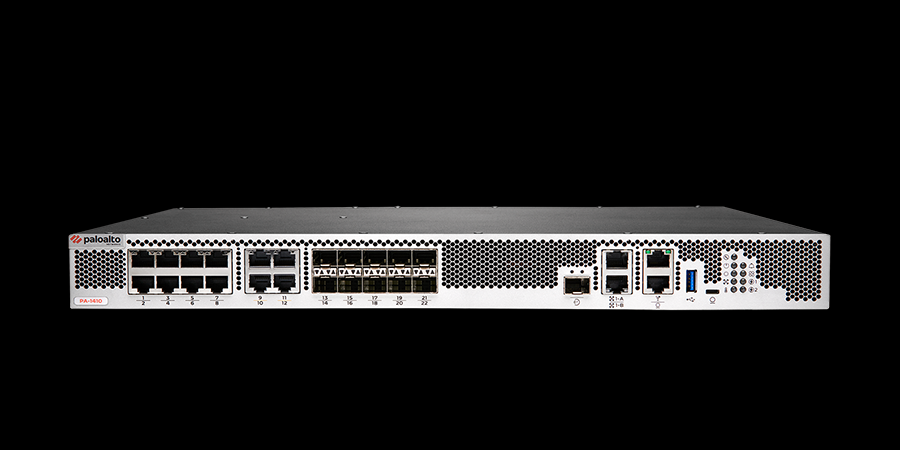

Palo Alto Networks PA-1400 series

Highlights

• World’s first ML-Powered NGFW
• Eleven-time Leader in the Gartner Magic Quadrant for Network Firewalls
•  Leader in the Forrester Wave: Enterprise Firewalls, Q4 2022
• Delivers predictable performance with security services
•  Simplifies deployment of large numbers of firewalls with optional Zero Touch Provisioning (ZTP)
• Native web proxy support in NGFW to simplify and consolidate management of firewall and proxy functionalities
• Supports centralized administration with Panorama network security management
• Extends visibility and security to all devices, including unmanaged IoT devices, without the need to deploy additional sensors
• Supports high availability with active/active and active/passive modes
• Maximizes security investments and prevents business disruptions with Strata™ Cloud Manager

PA-400 Series Performance and Capacities

Firewall throughput (HTTP/appmix)

• 8.5 Gbps

Threat Prevention throughput (HTTP/appmix)

• 4.5 Gbps

IPsec VPN throughput

• 4.1 Gbps

Max sessions

• 945,000

New sessions per second

• 100,000

Networking Features

Interface Modes

• L2, L3, tap, virtual wire (transparent mode)

Routing

• OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
• Policy-based forwarding
• Point-to-point protocol over Ethernet (PPPoE)
• Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3

SD-WAN

• Path quality measurement (jitter, packet loss, latency)
• Initial path selection (PBF)
• Dynamic path change

IPv6

• L2, L3, tap, virtual wire (transparent mode)
• Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
• SLAAC

IPsec VPN

• Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication)
• Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
• Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512

VLANs

• 802.1Q VLAN tags per device/per interface: 4,094/4,094
