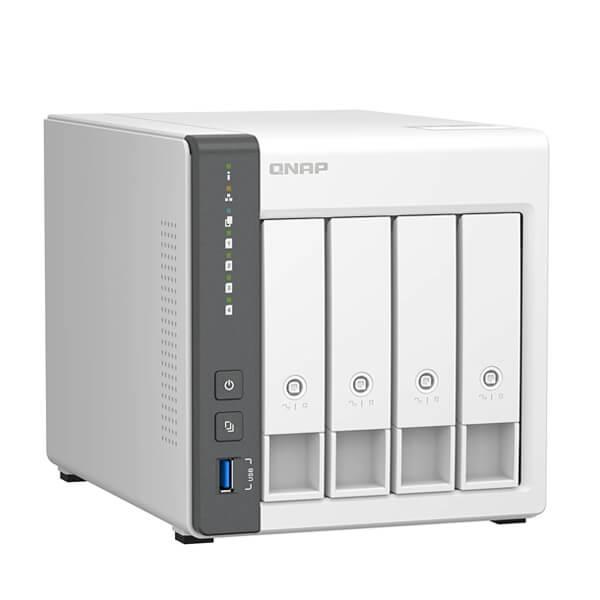

NAS Network Storage QNAP TS-433-4G

Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-433. Designed with a 2.5GbE port to enhance collaboration and increase remote work productivity, the TS-433 also features rich multimedia applications and provides a complete home entertainment portal.

Category : NAS Network Storage
Brand : QNAP
Model : QNAP TS-433-4G

Description

QNAP TS-433-4G


CPU

  • ARM 4-core Cortex-A55 2.0GHz processor

CPU Architecture

  • 64-bit ARM

Graphic Processors

  • Mali-G52

Floating Point Unit

  • Yes

Encryption Engine

  • Yes

Hardware-accelerated Transcoding

  • Yes

Neural Processing Unit (NPU)

  • Yes

System Memory

  • 4 GB on board (non-expandable)

Note: Reserves some RAM for use as shared graphics memory.

Maximum Memory

  • 4 GB on board (non-expandable)

Flash Memory

  • 4 GB (Dual boot OS protection)

Drive Bay

  • 4x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

  • 3.5-inch bays
  • 3.5-inch SATA hard disk drivesrn
  • 2.5-inch SATA solid state drives

Hot-swappable

  • Yes

Gigabit Ethernet Port (RJ45)

  • 1

Wake on LAN (WOL)

  • Yes

2.5 Gigabit Ethernet Portrn(2.5G/1G/100M)

  • 1 (2.5G/1G/100M)

Wake on LAN (WOL)

  • yes

Jumbo Frame

  • Yes

USB 2.0 port

  • 2

USB 3.2 Gen 1 port

  • 1

Form Factor

  • Tower

LED Indicators

  • System Status, LAN, USB, HDD1~4

Buttons

  • Power, Reset, USB Copy

Dimensions (HxWxD)

  • 165 × 160.2 × 220.5 mm
  • Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)

Weight (Net)

  • 3.5 kgrn

Weight (Gross)

  • 3.5 kg

Operating Temperature

  • 0 - 40 °C (32°F - 104°F)

Storage Temperature

  • -20 - 70°C (-4°F - 158°F)

Relative Humidity

  • 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)

Power Supply Unit

  • Minimum 65W adapter (12VDC), 100-240VAC

Power Consumption: HDD Sleep Mode

  • 8.45 W

Power Consumption Operating Mode, Typical

  • 22.54 W
  • Tested with drives fully populated.

Fan

  • 1 x 120mm, 12VDC

System Warning

  • Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

  • 200
