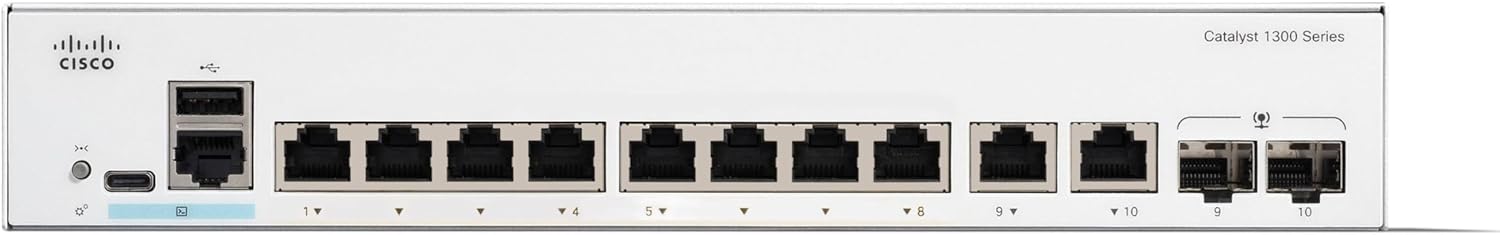

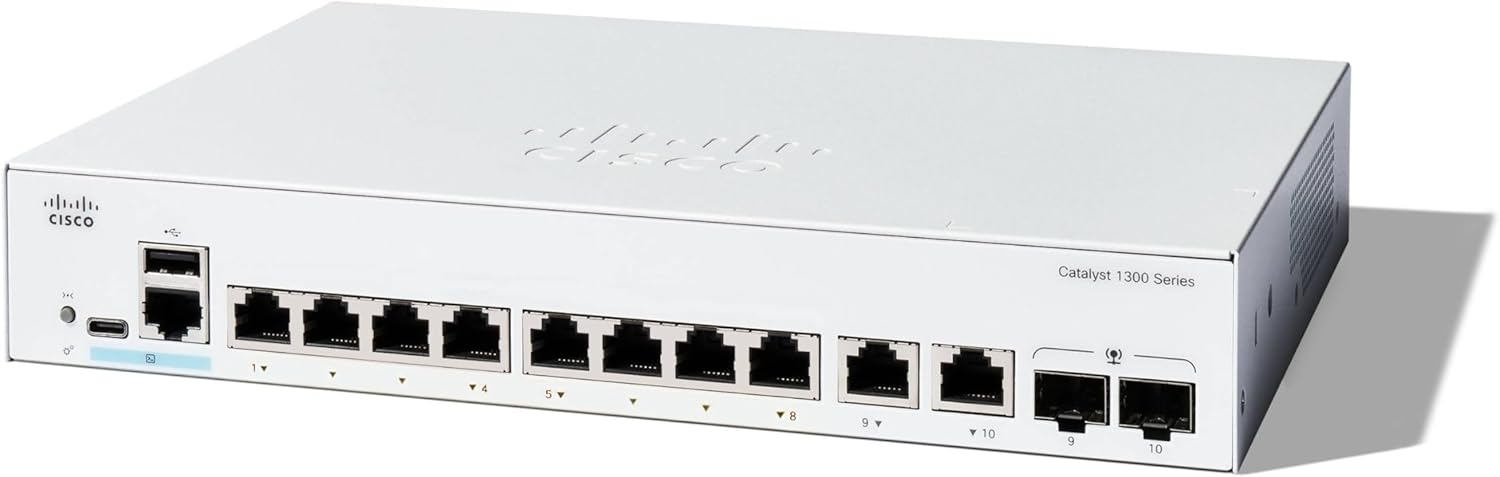

Cisco Catalyst 1300-8T-E-2G Managed Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1300-8T-E-2G)

Cisco Catalyst 1300-8T-E-2G Managed Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1300-8T-E-2G)

Category : Switches
Brand : Cisco
Model : C1300-8T-E-2G

Description

The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.

Product specifications

Performance
  • Capacity in Millions of Packets Per Second (mpps) (64-byte packets) : 14.88
  • Switching capacity in Gigabits per second (Gbps) : 20.0
Hardware
  • Power consumption (worst case)
    • System power consumption : 110V=10.63W; 220V=10.65W
    • Power consumption (with PoE) : N/A
    • Heat dissipation (BTU/hr) : 36.33
    • Idle Power : 110V=4.58W; 220V=4.72W

Ports

  • Total system ports : 10 x Gigabit Ethernet
  • RJ-45 ports : 8 x Gigabit Ethernet
  • Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) : 2 x Gigabit Ethernet combo
Console port : Cisco standard RJ-45 console port and USB Type C port
USB port : USB Type C port on the front panel of the switch for easy file and image management as well as console port
Buttons : Reset button
Cabling type : Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs : System, Link/Act, PoE, Speed
Flash : 512 MB
CPU : ARM dual-core at 1.4 GHz
DRAM : 1 GB DDR4
Packet buffer : 1.5 MB
Environmental
  • Unit dimensions (W x D x H) : 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in)
  • Unit weight : 1.39 kg (3.06 lb)
Power : 100-240V 50-60 Hz, external: C1300-8T-E-2G, C1300-8P-E-2G,
Certifications : UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature : 23° to 122°F (-5° to 50°C)
Storage temperature : -13° to 158°F (-25° to 70°C)
Operating humidity : 10% to 90%, relative, noncondensing
Storage humidity : 10% to 90%, relative, noncondensing
Acoustic noise and mean time between failures (MTBF)
  • FAN (number) : Fanless
  • Acoustic noise : –
  • MTBF at 25°C (hours) : 2,865,360
Warranty
  • Limited lifetime with return-to-factory replacement
Package contents
  • Cisco Catalyst 1300 Series Switch
  • Power cord (power adapter for select 8-port and 16-port SKUs)
  • Mounting kit
  • Pointer card
Minimum requirements
  • Web browser: Chrome, Firefox, Edge, Safari
  • Category 5e Ethernet network cable
  • TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed
